GZBtech 120V LED Neon Rope Light: Installation, Cutting & Waterproofing Guide

Table of Contents

  1. Product Overview
  2. Key Specifications
  3. Safety Warnings
  4. Color Options
  5. Installation Guide
  6. Cutting Instructions
  7. Powering Instructions
  8. Waterproofing Steps
  9. Troubleshooting
  10. Warranty & Support

1. Product Overview

GZBtech’s LED neon rope lights combine vibrant illumination with flexibility, which is ideal for decorative and ambient lighting. Features include:

  • 120V High Voltage: No power adapter is required.
  • IP65 Rating: Dustproof and water-resistant (non-waterproof at connections).
  • Cuttable Design: Customize length every 0.5 meters (20 inches).

2. Key Specifications

Voltage: 120V
Power Consumption: 1.92W per foot
Brightness: WW: 58 LM/FT, CW: 50 LM/FT.
LED Type: 2835 SMD
Max Run Length: 164 feet (50 meters)
Applications:  Indoor/outdoor ambient lighting, signage, retail displays



3. Safety Warnings

⚠️ Critical Guidelines:

  • Do not cover lights—overheating may cause melting or fire.
  • Unroll fully before use—coiled lights pose a fire hazard.
  • Cut only at 0.5-meter marks—avoid electrical risks.
  • Avoid water exposure—connections are non-waterproof.
  • Do not exceed 164ft per power supply to prevent overload.

4. Color Options

Choose from 12 vibrant single-color options:

  • Warm White (2800K)
  • Natural White (4000K)
  • Cool White (6000K)
  • Red, Blue, Ice Blue, Green, Pink, Purple, Amber, Yellow


5. Installation Guide

Cutting LED Neon Rope Lights

  1. Disconnect power at the source.
  2. Cut only at 0.5-meter marks (marked with scissor symbols).
  3. Seal ends with waterproof end caps.
  4. Test lights before mounting.

Note: Cutting voids certifications. Use sharp scissors for clean cuts.

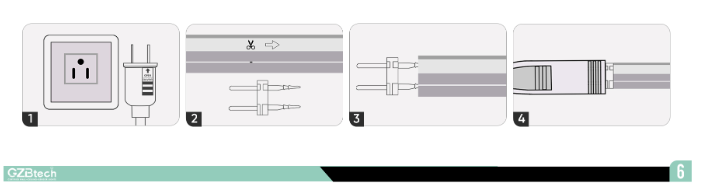

Powering Instructions

  1. Disconnect power.
  2. Align pins with the “>” polarity mark on the strip.
  3. Insert pins into the strip’s internal wires without over-pushing.
  4. Connect to a fused power cord and test.
  5. If lights fail, flip the power cord 180° to correct polarity.


Waterproofing Connections

  1. Apply silicone adhesive to exposed wires and joints.
  2. Cover with heat shrink tubing and seal with a heat gun.
  3. Allow 24 hours for the adhesive to cure.

Warning: Non-recommended sealants (e.g., electrical tape) void the warranty.

6. Troubleshooting

Issue Solution
Entire Light Off Check 120V outlet, fuse, or polarity.
Partial Dark Spots Secure loose pin connections.
Flickering Replace the damaged power cord.
Water Damage Reapply silicone sealant to joints.





7. Warranty & Support
